When considering a renewable energy system, one of the first questions homeowners and business owners often ask is, “How large is a solar panel?” The answer, as experts in solar photovoltaic (PV) installations, Geo Green Power knows, is not a single number. The ‘size’ of a solar panel refers to two distinct but related measures: its physical dimensions and its power output (wattage).
Understanding the relationship between these two factors, solar panel size dimensions and solar panel sizes and wattage, is crucial for designing an effective system that maximises power generation within the constraints of your roof space. Geo Green Power has deep experience in optimising system design for both residential and commercial solar panel size requirements across the UK.
Dual Definitions: Wattage vs. Physical Dimensions
To answer the fundamental question, we must clarify the two ways the industry defines size:
1. The Power Rating (Wattage)
The power rating is the most important measure of a solar panel’s capability. It is listed in Watts (W) and tells you the maximum amount of electricity the panel can generate under Standard Test Conditions (STC).
Average Solar Panel Size (Wattage): For most modern installations, the power rating of a single panel typically ranges from 350W to 450W for residential use. This figure has risen significantly in recent years due to advancements in cell technology, such as the use of high-efficiency monocrystalline cells.
Commercial Solar Panel Size (Wattage): Panels used for large-scale commercial solar panel installations often have a higher wattage, commonly ranging from 400W to over 600W. These panels are often physically larger, incorporating more solar cells to boost the overall power output.
2. The Physical Dimensions
This refers to the panel’s actual length, width, and thickness. It dictates how many panels can physically fit onto your roof and, therefore, the total system size in kilowatts-peak (kWp).
Standard Solar Panel Size Dimensions for Residential Projects
For homeowners, solar photovoltaic panel sizes are generally standardised to fit conventional roof structures while providing an excellent balance of output and footprint.
Typical Solar Panel Size (Residential): A standard solar panel size for UK homes is consistently around 1.7 to 2.0 square metres in surface area.
Common Dimensions: The solar panel size dimensions you will most frequently encounter are approximately:
- Length: 1.7m to 1.9m (e.g., 1700mm to 1900mm)
- Width: 0.95m to 1.05m (e.g., 950mm to 1050mm)
- Thickness: 30mm to 40mm (including the frame)
This typical solar panel size is usually an array composed of 60 individual solar cells. Geo Green Power’s design team uses these precise measurements, factoring in necessary clearances around the array, to map out the optimal layout on your roof, ensuring maximum coverage and aesthetic appeal.
Key Takeaway: If you hear someone ask, “How large is a solar panel?”, the standard answer for a modern domestic panel is approximately 1.7m by 1.0m.

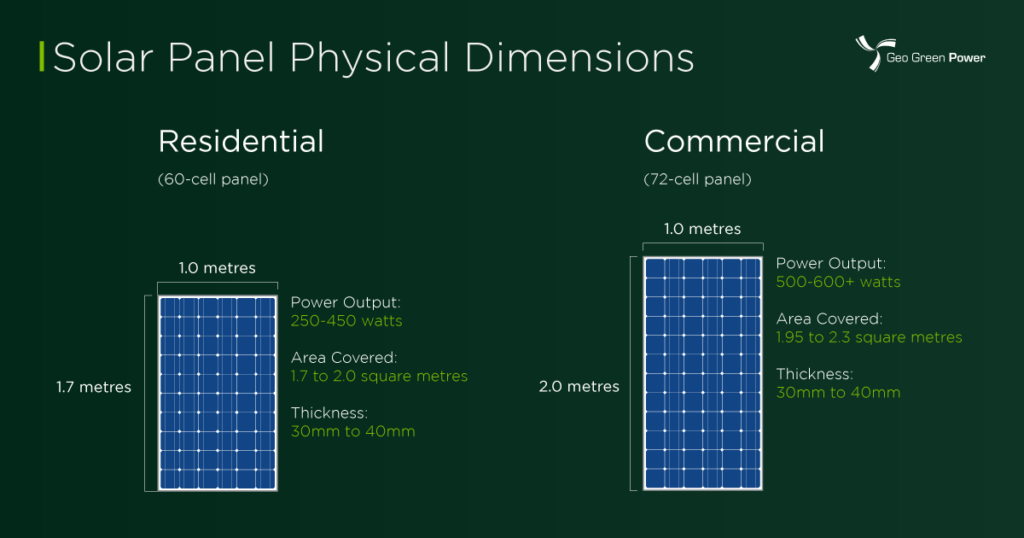

Solar panel physical dimensions diagram for residential and commercial.
Commercial Solar Panel Size and Scaling Up
The requirements for commercial premises, such as warehouses, factories, and agricultural buildings, are significantly different from domestic needs. These buildings typically have vast, unobstructed roof spaces and very high energy demands, leading to a need for larger size solar panels.
Larger Dimensions: Commercial solar panel sizes tend to be physically larger than residential models, often containing 72 or more solar cells. Solar panel size dimensions for commercial arrays can exceed 2.0m in length and 1.0m in width, approaching 2.2m by 1.1m or even larger in some cases.
Higher Output: These larger dimensions facilitate the much higher solar panel sizes and wattage required for commercial use, often pushing the output into the 500W to 600W+ range per panel.
System Size: Geo Green Power regularly installs large-scale systems, where the total system size is measured in tens or hundreds of kilowatts peak (kWp), such as 100kWp, 250kWp, or even multi-megawatt (MW) ground-mounted systems. The goal is to install the highest wattage per square metre possible to meet the business’s operational needs and achieve the fastest return on investment.
Why Does the Size of Solar Panels Matter? The Efficiency Equation
When choosing your system, the physical size of a solar panel and its wattage are intrinsically linked to efficiency. This is where the expertise of your installer, Geo Green Power, becomes invaluable.
Watts Per Square Metre
A panel’s efficiency is determined by how much power (Watts) it can generate relative to its physical surface area (m2). A high-efficiency panel generates more power from a smaller footprint, making it ideal for smaller or more complex roofs where space is limited.
Panel B, despite having the same physical solar panel size, is more efficient and will allow you to generate a higher total system output (kWp) on a restricted roof.
System Design and Aesthetics
For domestic installations, the solar panel size dimensions directly affect the aesthetic outcome. Geo Green Power often recommends high-efficiency, all-black panels that look sleek and modern. By using slightly more powerful panels, fewer units may be needed to achieve the desired system output, resulting in a cleaner, less cluttered appearance.
The Geo Green Power Approach to System Sizing
We never rely on a generic “average solar panel size.” Our methodology ensures that your solar PV system is perfectly matched to your specific requirements:
- Energy Consumption Analysis: We first determine your annual electricity consumption (in kWh) and your energy goals. Do you want to cover 100% of your usage, charge an EV, or simply reduce your bills?
- Roof Survey and Constraint Mapping: Our specialists conduct a detailed survey, measuring all available roof areas, factoring in obstructions like chimneys and vents, and identifying shading patterns. This determines the maximum number of panels of a specific standard solar pv panel size that can be installed.
- Component Selection: We select the optimal solar panel sizes and wattage (e.g., a 400W panel over a 370W panel) to achieve your required total system size (kWp) within the available space. For example, to achieve a 4kWp system, you could use ten 400W panels.
- Final Design: The final design balances maximum energy yield, structural integrity, compliance with building regulations, and visual aesthetics.
By focusing on the perfect combination of panel efficiency, wattage, and physical size of solar panels, Geo Green Power delivers a powerful, long-lasting, and visually harmonious solar energy solution tailored precisely to your needs.
If you are wondering which solar panel sizes are right for your property or business, our experts can conduct a free, no-obligation survey and design a bespoke system.
Contact the team today.
